| Product classification |
| Regional Availability |
Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio |
CommScope® |
| Product Type |

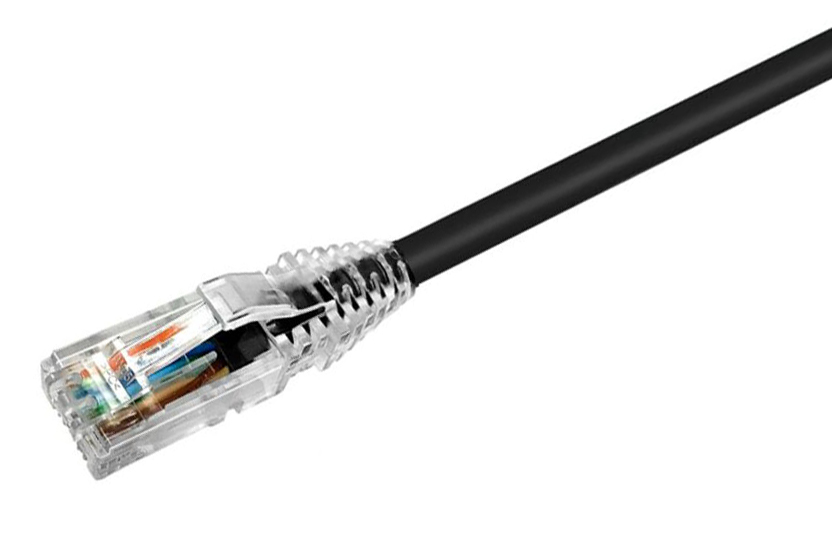

Twisted pair patch cord |
| Product Series |
CO |
| Ordering Note |
Cords < 1 m are valid elements for use in a channel or as an equipment interconnect but due to their limited length are not guaranteed to meet component compliance requirements that were developed to assess the quality of longer cords | Cords > 1 m are authorized for use in channels and are an effective standalone method used to connect active devices |
| General Specifications |
| ANSI/TIA Category |
6A |
| Cable Type |
U/UTP (unshielded) |
| Conductor Type |
Solid |
| Interface, Connector A |
RJ45 plug |
| Interface Feature, connector A |
Standard |
| Interface, Connector B |
RJ45 plug |
| Interface Feature, connector B |
Standard |
| Jacket Color |
Black |
| Pairs, quantity |
4 |
| Transmission Standards |
ANSI/TIA-568.2-D | ISO/IEC 11801 Class EA |
| Wiring |
T568B |
| Dimensions |
| Cable Assembly Length Range (m) |
1 – 100 |
| Cable Assembly Length Range (ft) |
1 – 328 |
| Diameter Over Jacket |
7.24 mm | 0.285 in |
| Compatible Conductor Gauge, solid |
24 AWG |
| Wiring Diagram |
Click on image to enlarge. |
| Electrical Specifications |
| Contact Resistance, maximum |
20 mOhm |
| Current Rating at Temperature |
1.5 A @ 20 °C | 1.5 A @ 68 °F |
| dc Resistance, maximum |
0.3 ohm |
| Dielectric Withstand Voltage, RMS, contact-to-contact |
1,000 Vac @ 60 Hz |
| Insulation Resistance, minimum |
500 MOhm |
| Remote Powering |
Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002 |
| PoE Durability |
Supports IEEE 802.3bt Type 4 (90 W) applications greater than 3000 plug to jack mating cycles |
| Safety Voltage Rating |
300 V |
| Ordering Tree |
| Ordering Tree |
Click on image to enlarge. |
| Material Specifications |
| Conductor Material |
Bare copper |
| Contact Plating Material |
Gold over nickel |
| Plug Contact Material |
Phosphor Bronze |
| Plug Housing Material |
Polycarbonate clear |
| Jacket Material |
Low Smoke Zero Halogen (LSZH) |
| Mechanical Specifications |
| Plug Retention Force, minimum |
50 N | 11.24 lbf |
| Plug to Jack Mating Cycles |
Complies to IEC 60603-7 series |
| Environmental Specifications |
| Operating Temperature |
-40 °C to +60 °C (-40 °F to +140 °F) |
| Storage Temperature |
-40 °C to +70 °C (-40 °F to +158 °F) |
| Environmental Space |
Outdoor |
| Flammability Rating |
UL 94 V-0 |
| Safety Standard |
ETL | cETL |
| Packaging and Weights |
| Packaging quantity |
1 |
| Regulatory Compliance/Certifications |
| CHINA-ROHS |
Below maximum concentration value |
| ISO 9001:2015 |
Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC |
Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS |
Compliant |
| UK-ROHS |
Compliant |
