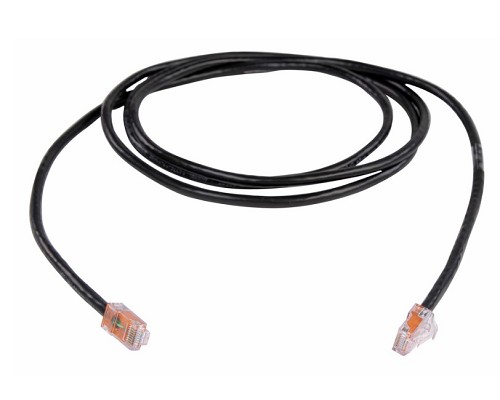

CommScope CPC3312-0ZM017 | GigaSPEED XL Cat 6 RJ45 Patch Cord, Non-Plenum
CommScope – CPC3312-0ZM017 – Specifications
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | SYSTIMAX® |
| Product Type | Twisted pair patch cord |
| Product Brand | GigaSPEED XL® |
| Product Series | CPC | UTG |
| ANSI/TIA Category | 6 |
| Cable Type | U/UTP (unshielded) |
| Conductor Type | Stranded |
| Interface, Connector A | RJ45 plug |
| Interface Feature, connector A | Standard |
| Interface, Connector B | RJ45 plug |
| Interface Feature, connector B | Standard |
| Jacket Color | Black | Blue | Dark gray | Green | Light blue | Lilac | Orange | Purple | Red | Spring green | Violet | White | Yellow |
| dc Resistance, maximum, Remote Powering, PoE Durability, Safety Voltage Rating | 0.3 ohm. Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the un-mating under electrical load requirements prescribed by IEC 60512-99-002. Supports IEEE 802.3bt Type 4 (90 W) applications greater than 3000 plug to jack mating cycles, 300 V. |
| Contact Plating Material | Precious metals |
| Material Type | Copper alloy | Polycarbonate |
